Rasper
All New Rasper
A heavy-duty rasper built for high starch extraction, precise rasping control, and reliable continuous operation in cassava, tapioca, and potato starch factories.
The key machine for starch release
The rasper is a key component in the cassava and potato starch process. It grinds roots and tubers into pulp, opening the material structure so starch can be released for further extraction.
Stamex developed the All New Rasper for high rasping efficiency over long production periods, with a robust rotor design, direct drive configuration, and heavy-duty stainless steel construction for demanding industrial operation.
What the rasper does
The rasper grinds cassava roots, potatoes, and other tubers into pulp for starch extraction. This step helps release starch from the raw material before the slurry continues to separation, washing, and refining.
Engineered for efficient rasping
- Direct drive configuration
- High rotor speed and narrow rasping aperture
- Adjustable cutter block for setting the distance to the rotor block
- Adjustable sieve plate height for additional output control
- One-piece forged hardened chromium steel rotor ring
- Heavy-duty stainless steel rotor housing
- Labyrinth shaft seal preventing product leakage
Adjustable components for precise output

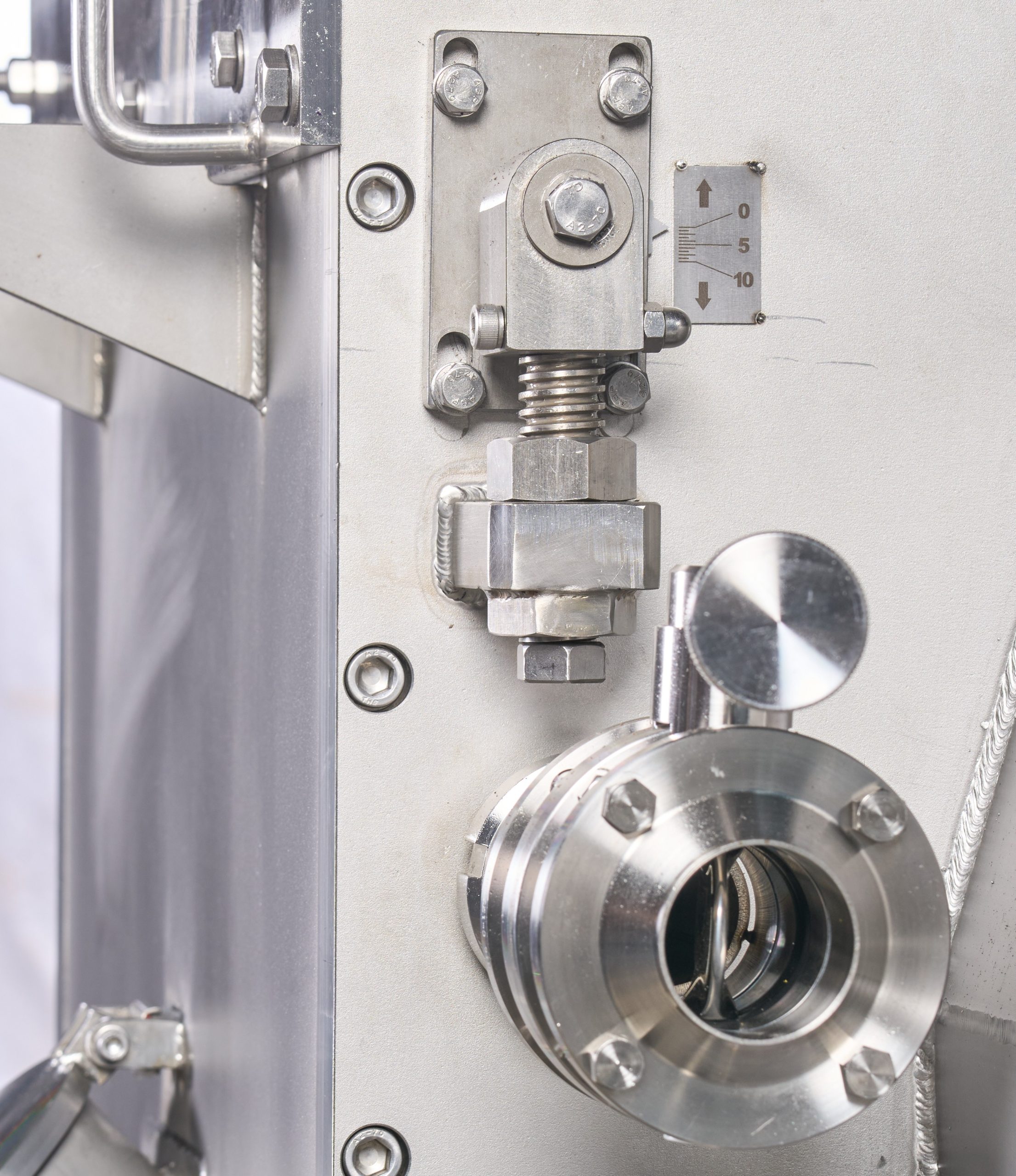

These machine details show the adjustment points that control the rasping action. The cutter block can be set closer to or further from the rotor block, while the sieve plate height can also be adjusted. Together, these settings help tune the machine for the required output.
All New Rasper specifications
Available in several configurations to match different processing capacities and factory requirements.
| Type | Rotor | Saw Blades | Motor | Capacity Tapioca | Capacity Potato |
|---|---|---|---|---|---|
| ST-R-835-500 | Ø835/500 mm | 120 | 200 kW | 100-120 ton/day | 25 ton/day |
| ST-R-835-600 | Ø835/600 mm | 120 | 200-250 kW | 110-130 ton/day | 30-35 ton/day |
| ST-RD-1100-600 | Ø1100/600 mm | 180 | 250-315 kW | 150-200 ton/day | 45-50 ton/day |
| ST-RD-1300-600 | Ø1300/600 mm | 212 | 355 kW | >200 ton/day | >50 ton/day |
Spare parts for multiple rasper brands
Stamex provides spare parts for various brands of raspers, helping customers maintain reliable performance and minimise downtime.
Need the right rasper configuration?
Send us your capacity and raw material requirements. We will help match the right rasper configuration to your process.
